起源の場所:
中国
ブランド名:
PASSIONHOSE
証明:
FDA, RoHS, REACH
モデル番号:
111

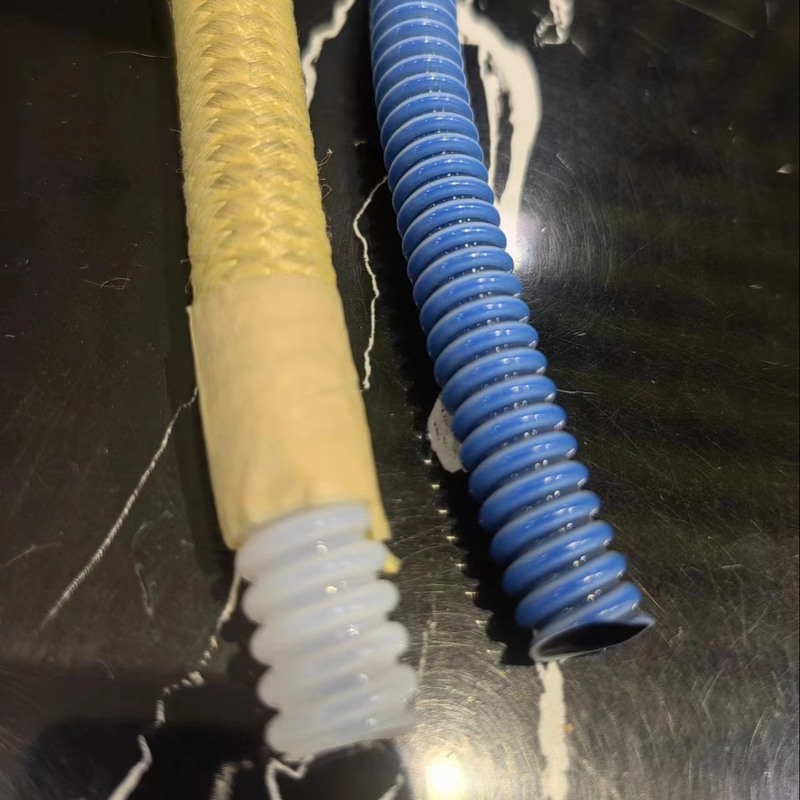

Anti-Static PTFE Tubing: Performance with Protection.
Get the best of both worlds: the unmatched properties of PTFE with built-in, permanent anti-static protection.
✅ Prevents Static Buildup: Safeguards sensitive components and prevents fire hazards in volatile atmospheres.
✅ Chemically Inert: Handles corrosive chemicals and solvents with ease.
✅ Withstands Extreme Temperatures: Performs reliably from cryogenic levels to high-heat environments.
✅ Ultra-Smooth & Non-Stick: Ensures uncontaminated flow and easy cleaning.
✅ Durable & Long-Lasting: Offers a maintenance-free solution for demanding applications.
Upgrade your critical fluid systems with tubing that protects your process and your product.
Tube: PTFE
Reinforcement: SS304/316 wire
Temperature: -65C to 250C
Transfer Medium: High temperature oil/water, steam, strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue, etc.
Conductivity: 10^6
| ID. (inch) | ID.(mm) | OD (mm) | Thickness (mm) | WP (bar) | BP (bar) | Min. Bend Radius (mm) |
| 1/8" | 3.5 | 6.7 | 1 | 250 | 1000 | 16 |
| 3/16" | 4.8 | 7.6 | 0.85 | 205 | 820 | 20 |
| 1/4" | 6.4 | 9.4 | 0.85 | 187 | 750 | 27 |
| 5/16" | 8 | 11.1 | 0.85 | 162 | 650 | 27 |
| 3/8" | 10 | 13.1 | 0.85 | 130 | 520 | 33 |
| 13/32" | 10.3 | 13.5 | 0.85 | 125 | 500 | 46 |
| 1/2" | 12.7 | 16.2 | 1 | 112 | 450 | 66 |
| 5/8" | 16 | 19.4 | 1 | 80 | 320 | 150 |
| 3/4" | 19 | 23 | 1.2 | 70 | 280 | 226 |
| 7/8" | 22.2 | 26.2 | 1.2 | 60 | 240 | 245 |
| 1" | 25.4 | 29.8 | 1.5 | 50 | 200 | 300 |
