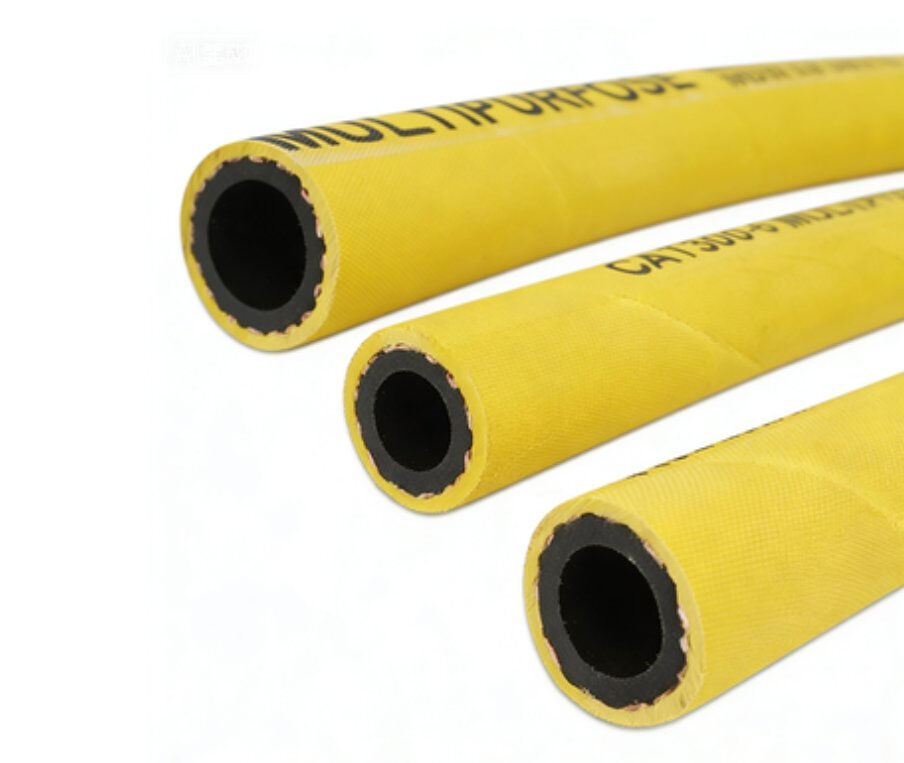

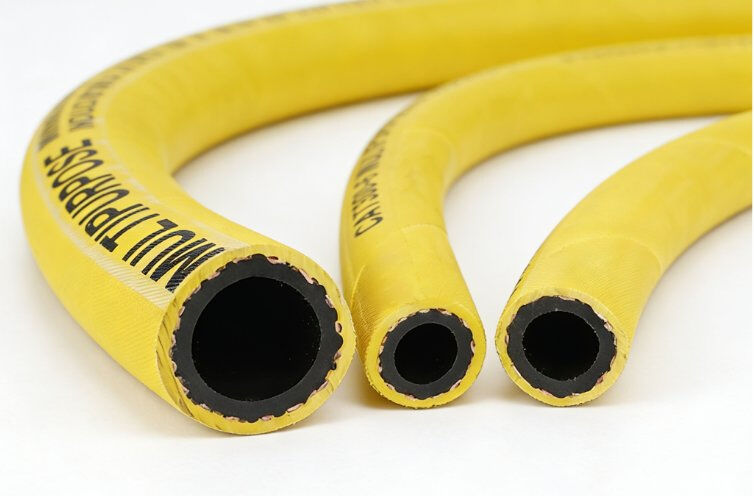

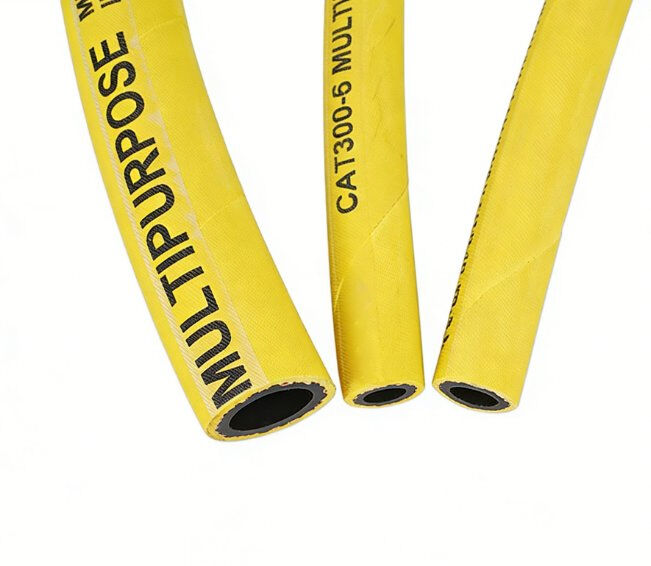

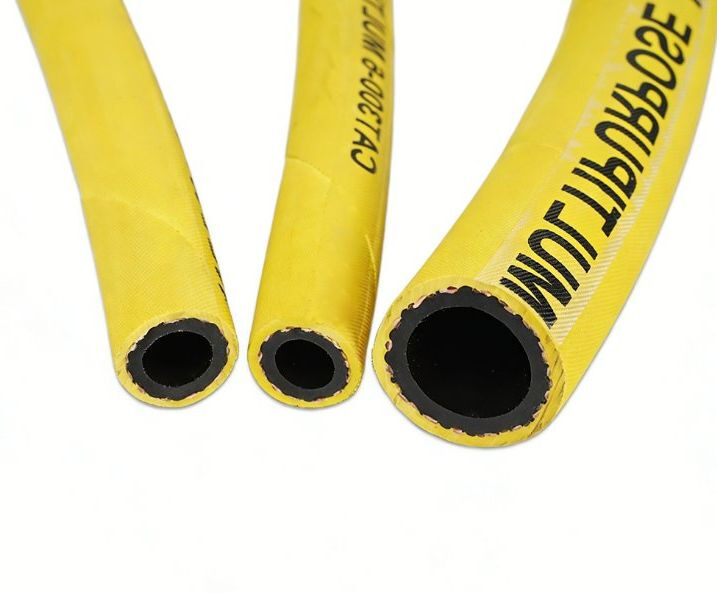

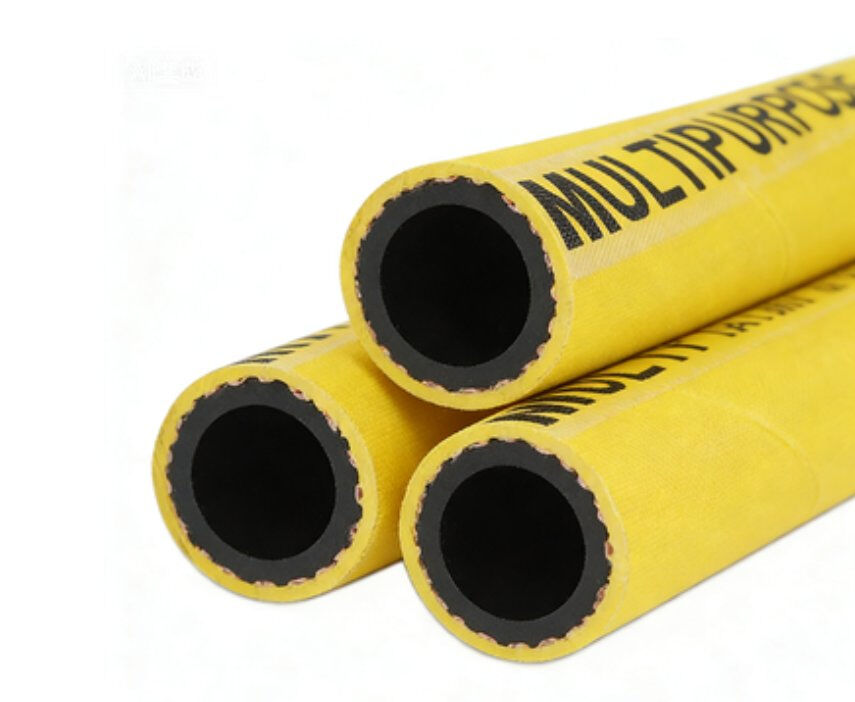

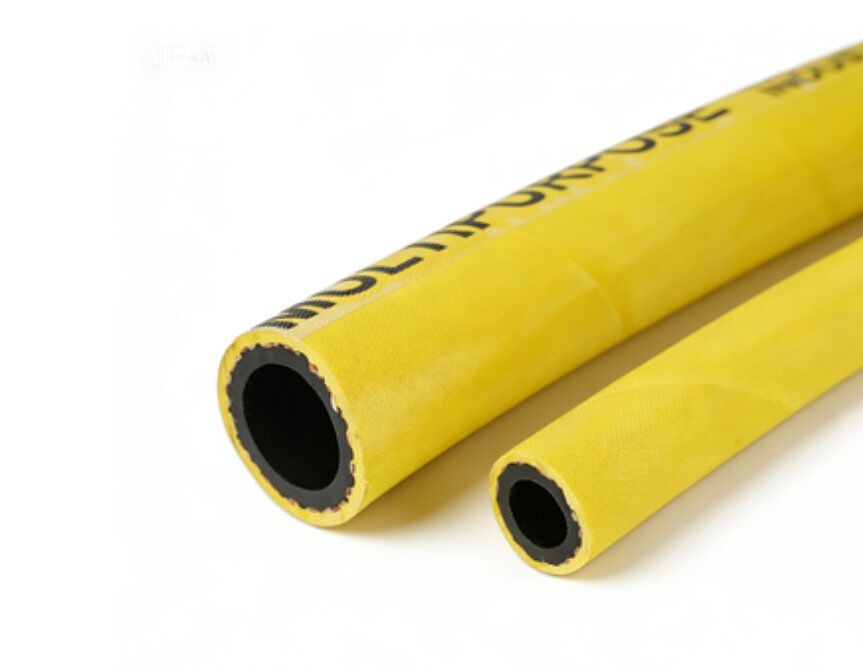

Flexible Multipurpose Mining Air Water Hose or High Pressure Industrial Use
Product Description
Construction: Tube: Black Nitrile RMA Class A.
Reinforcement: High tensile polyester fiber braided.
Cover: Nitrile RMA Class A
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: For the transfer of air, water, light oils and chemicals. The black nitrile tube is non-conductive,
minimum electrical resistance greater than 1 megohm per inch of length of hose at 1000 volts DC.
Standard length: 50m, 100m.
Product Parameters
Specification:
| Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
| inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
| 3/16" |
5 |
11.5 |
20 |
300 |
60 |
900 |
100 |
0.02 |
0.15 |
| 1/4" |
6 |
13 |
20 |
300 |
60 |
900 |
100 |
0.025 |
0.17 |
| 5/16" |
8 |
15 |
20 |
300 |
60 |
900 |
100 |
0.03 |
0.22 |
| 3/8" |
10 |
17 |
20 |
300 |
60 |
900 |
100 |
0.04 |
0.26 |
| 1/2" |
13 |
21 |
20 |
300 |
60 |
900 |
100 |
0.07 |
0.4 |
| 5/8" |
16 |
24 |
20 |
300 |
60 |
900 |
50 |
0.06 |
0.45 |
| 3/4" |
19 |
29 |
20 |
300 |
60 |
900 |
50 |
0.07 |
0.7 |
| 1" (1b) |
25 |
36 |
12 |
180 |
36 |
540 |
50 |
0.09 |
0.85 |
| 1" (2b) |
25 |
37 |
20 |
300 |
60 |
900 |
50 |
0.1 |
0.95 |
| 1-1/4" |
32 |
44 |
10 |
150 |
30 |
450 |
50 |
0.16 |
1.4 |
| 1-1/2" |
38 |
51 |
10 |
150 |
30 |
450 |
50 |
0.20 |
1.7 |
| 2" |
51 |
65 |
10 |
150 |
30 |
450 |
20 |
0.20 |
2.2 |
Company Profile
ISO9001 Certified hose manufacturer.
Hangzhou Paishun Hose Technology Co., Ltd. is located in Suqian Industrial Zone, the native place of Lord Xiang Yu of Western Chu County before the Qin Dynasty. Its plant zone is a pleasant place with easy access by different ways of transport, 70KM to Lianyungang Sea Port, 60KM to Xuzhou International Airport.
The factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
We produce mainly the industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.
Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipments. We now use a series of tensile testing machine, vulcanization testing device, aging testing chest, pressure testing machines to ensure the effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials till the end step. Thus, we wish our products can satisfy in maximum our customers, and help them to gain more and more market share.
Certifications
Our Factory
Paishun hose factory
Logistics
If you have any inquiry, please feel free to contact us. :)
